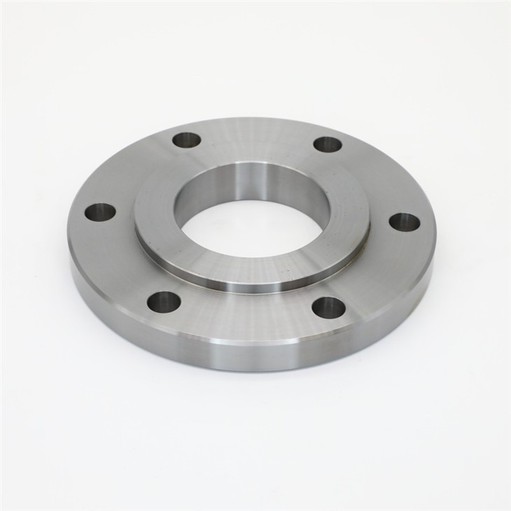

What is CNC Machining Flanges
CNC Machining Flanges refers to the process of using Computer Numerical Control (CNC) machines to manufacture flanges. Flanges are a type of mechanical part that is typically used to connect sections of pipe, valves, pumps, and other equipment in various industrial applications.
Why Choose Us
Our Equipment
HXN has precision casting production line and more than 60 kinds of machining equipments. Such as CNC lathes, Swiss CNC Lathe machine, 4 Axis machining centers, 5 Axis machining centers, wire cutting machines, milling machines, drilling machines and other equipments at state-of-the-art.
Our Product
We specialize in manufacturing non-standard customized parts, the main processes are precision casting and CNC machining. Our product includes all materials, carbon steel, alloy steel, stainless steel, brass, and aluminum.
Our Certificate
We always feel that all success of our company is directly related to the quality of the products we offer. They meet the highest quality requirements as stipulated in ISO9001, ISO14000:14001 SGS guidelines, and our stringent quality control system.
Production Market
We have customers from both the domestic market and the oversea market. Sales managers can speak fluent English for good communication. The total value of output is up to 5 million USD, exported to more than 20 countries. HXN products are widely used in the flow control industry and various kinds of equipment.
Advantages of CNC Machining Flanges
Precision and Accuracy: CNC machining offers unparalleled precision and accuracy, ensuring that flanges are manufactured to exact specifications and tolerances. This is crucial in industries where even minor deviations can result in leakage or equipment failure.
Consistency and Repeatability: The automated nature of CNC machining means that each flange produced will be virtually identical to the last, eliminating variations that can occur with manual machining. This consistency is essential for maintaining quality control and ensuring reliable performance in critical applications.
Material Versatility: CNC machines can work with a wide range of materials, including various metals, alloys, and even plastics. This versatility allows manufacturers to produce flanges suitable for a broad spectrum of industrial applications and operating environments.
Increased Productivity: CNC machining significantly increases productivity by automating many of the manufacturing processes. This not only reduces labor costs but also shortens production times, enabling faster turnaround and greater overall output.
Complex Designs: CNC machining excels at handling complex designs that may be difficult or impossible to achieve through manual means. This capability allows for the creation of flanges with intricate features and geometries that can enhance their performance and functionality.
Enhanced Safety: CNC machines operate within tightly controlled parameters, reducing the risk of operator injury or accidents. Additionally, the automated nature of the process allows for remote operation and monitoring, further enhancing safety in the workplace.
Applications of CNC Machining Flanges
Oil and Gas Industry:Piping systems: Flanges are crucial components in the piping systems of oil and gas refineries, petrochemical plants, and natural gas processing facilities. CNC machining ensures tight tolerances and accurate dimensions for leak-free connections.Valves and pumps: Flanges connect valves, pumps, and other equipment in fluid handling systems, ensuring proper sealing and system integrity.
Power Generation:Steam turbines: In power plants, flanges are used to connect sections of steam turbines and other critical components, withstanding high temperatures and pressures.
Nuclear plants: Flanges in nuclear power plants must meet strict safety standards. CNC machining provides the precision necessary for these critical applications.
Water Treatment and Distribution:Pumps and valves: Flanges are used in water pumps, valves, and piping systems to facilitate the flow of water in treatment plants and distribution networks.
Wastewater treatment: Flanges are also employed in wastewater treatment facilities, where they must withstand corrosive environments.
Chemical Processing:Reactors and piping: Chemical plants require flanges that can handle aggressive chemicals and high temperatures. CNC machining allows for the production of flanges with specialized alloys and coatings to resist corrosion.
Marine and Shipbuilding:Ship piping systems: Flanges are extensively used in the piping systems of ships and offshore platforms, where they must withstand saltwater corrosion and extreme weather conditions.Propulsion systems: Flanges connect engines, propellers, and other components in marine propulsion systems.
Automotive Industry:Exhaust systems: Flanges are used to connect sections of exhaust pipes in automotive applications, ensuring proper sealing and emission control.Fluid lines: CNC machining flanges are also found in fuel lines, coolant systems, and other fluid-handling components of vehicles.
Aerospace Industry:Aircraft engines: Flanges are critical components in the assembly of aircraft engines, where they must withstand extreme temperatures, pressures, and vibrations.Fuel systems: Flanges connect fuel tanks, pumps, and lines, ensuring the safe and efficient operation of aircraft fuel systems.
What are Features of CNC Machining Flanges
CNC machining flanges offer several distinct features that make them a preferred choice in various industrial applications. Here are some key features of CNC machining flanges:
Precision and Accuracy:CNC (Computer Numerical Control) machining allows for high levels of precision and accuracy in flange production.
This ensures that flanges fit perfectly into piping systems, providing secure seals and minimizing the risk of leaks.
Customizability:CNC machining offers flexibility in design, allowing for the production of custom-sized and shaped flanges.This customizability is essential in meeting the specific requirements of different piping systems and applications.
Material Versatility:CNC machining can be used to process a wide range of materials, including stainless steel, carbon steel, aluminum, and more.
This versatility allows for the production of flanges suitable for various operating conditions and environments.
Consistency and Repeatability:CNC machining processes are highly automated, ensuring consistent quality and repeatability in flange production.
This consistency reduces the need for manual adjustments and enhances overall productivity.
Enhanced Surface Finish:CNC machining can achieve smooth surface finishes on flanges, which is crucial for ensuring tight seals and preventing corrosion.
The improved surface finish also enhances the flange's appearance and durability.
Cost-Effectiveness:While the initial setup costs for CNC machining may be higher, the long-term cost savings from increased productivity, reduced waste, and minimized downtime make it a cost-effective option.Additionally, the ability to produce custom flanges without the need for expensive tooling or molds further contributes to cost savings.
Rapid Production Times:CNC machining is a relatively fast process, allowing for quick turnaround times on flange orders.This rapid production capability is essential in meeting tight deadlines and maintaining supply chain efficiency.
Integration with Other Manufacturing Processes:CNC machining can be easily integrated with other manufacturing processes, such as welding, finishing, and assembly.This integration streamlines the production process and ensures that flanges are manufactured to the highest standards of quality and performance.
Working Principle of CNC Machining Flanges
Design and Planning:The process begins with the design of the flange, which is created using CAD (Computer-Aided Design) software.
The design specifies the dimensions, material, and any specific features required for the flange.
Once the design is complete, it is converted into a machine-readable format, such as G-code, which provides instructions for the CNC machine.
CNC Programming:The G-code is then loaded into the CNC machine's control system.
This code contains detailed instructions for every movement and operation that the machine needs to perform to machine the flange.
The programmer sets the parameters for the cutting tools, spindle speeds, feed rates, and other machining variables.
Material Loading:The raw material, such as a block of metal or a forged blank, is loaded into the CNC machine.
It is securely clamped or fixtured to ensure it remains stationary during the machining process.
Machining Process:The CNC machine's spindle, which holds the cutting tool, moves according to the programmed instructions.
The cutting tool removes material from the workpiece in a controlled manner to shape the flange.
Multiple tools and cutting operations may be required to achieve the desired shape, size, and features of the flange.
Cooling and Lubrication:During the machining process, coolant and lubricants are applied to the cutting area.
This helps to reduce heat, friction, and wear on the cutting tools, improving tool life and surface finish.
Quality Control:After the machining is complete, the flange undergoes quality control checks.
These checks may include dimensional inspections, visual inspections, and non-destructive testing to ensure the flange meets specifications and quality standards.
Finishing and Post-Processing:Depending on the requirements, the flange may undergo additional finishing operations such as deburring, sanding, or painting.
Any necessary post-processing steps, such as heat treatment or threading, are also performed.
Final Inspection and Packaging:The final flange is inspected to ensure it meets all quality standards and customer requirements.
It is then packaged and prepared for shipment or further assembly.
Factors to Consider When Selecting CNC Machining Flanges
When selecting CNC machining flanges for your application, there are several factors to consider to ensure you choose the right flange for your needs. Here are some key factors to keep in mind:
Material Selection:The material of the flange must be compatible with the medium it will transport (e.g., gas, liquid, chemicals) and the operating conditions (temperature, pressure, corrosion).
Common materials include stainless steel, carbon steel, alloy steel, aluminum, brass, and bronze. Each material has its own advantages and disadvantages.
Flange Type and Standard:Different flange types (e.g., weld neck, slip-on, socket weld, threaded, blind) are designed for specific applications and connection methods.
Ensure that the flange type you select adheres to the required standards and specifications (e.g., ANSI, DIN, EN, JIS) for your industry or region.
Dimensions and Tolerances:Accurate dimensions are crucial for proper fitting and sealing. CNC machining provides tight tolerances, ensuring a precise fit.
Consider the flange's outer diameter, inner diameter, thickness, bolt circle diameter, and number/size of bolt holes.
Pressure Rating:Flanges are rated for specific pressure classes based on their design and material. Choose a flange with a pressure rating that meets or exceeds your system's requirements.
Temperature Considerations:The operating temperature range of the flange must be compatible with the application. Some materials lose strength or become brittle at extreme temperatures.
Corrosion Resistance:If the flange will be exposed to corrosive media, select a material with good corrosion resistance properties. Coatings or surface treatments can also enhance corrosion resistance.
Compatibility with Other Components:Ensure that the flange is compatible with the gaskets, bolts, nuts, and other hardware used in the joint.
Cost and Availability:Consider the cost of the flange and its material, as well as the availability of the flange in the required quantity and lead time.
Certification and Quality Assurance:Look for flanges that are certified to international quality standards (e.g., ISO) and those manufactured by reputable suppliers with strict quality control measures.
Installation and Maintenance Requirements:Consider the ease of installation, as well as any special tools or procedures required. Also, think about future maintenance needs, such as replacing gaskets or inspecting the flange for damage.
How to Maintain CNC Machining Flanges
Regular Inspection:Conduct periodic visual inspections to check for any signs of wear, corrosion, cracks, or other damage.
Use non-destructive testing methods, such as ultrasonic or radiographic testing, to detect any internal defects or cracks if necessary.
Cleaning:Keep the flange surfaces clean by removing dirt, debris, and any accumulated corrosive materials.
Use appropriate cleaning agents and methods that are compatible with the flange material.
Lubrication:If the flange has moving parts or threaded connections, apply the recommended lubricants to ensure smooth operation and prevent galling or seizing.
Follow the manufacturer's recommendations for the type and frequency of lubrication.
Tightening of Bolts and Fasteners:Periodically check and retighten bolts and fasteners to maintain the flange's structural integrity and sealing performance.
Use torque wrenches to ensure bolts are tightened to the specified torque values.
Protective Coatings:Apply protective coatings or treatments to the flange surfaces to enhance corrosion resistance and extend service life.Regularly inspect and reapply coatings as needed, following the manufacturer's recommendations.
Replacement of Damaged Parts:If any damage or wear is detected during inspections, promptly replace the affected parts to prevent further deterioration or failure.Keep spare parts on hand to minimize downtime during maintenance.
Documentation and Records:Keep detailed records of maintenance activities, including inspection dates, findings, and any corrective actions taken.This documentation can help track the flange's performance over time and identify any patterns or areas of concern.
Training and Safety:Ensure that personnel involved in flange maintenance are properly trained and familiar with the equipment, procedures, and safety precautions.Follow all relevant safety guidelines and use personal protective equipment (PPE) when handling flanges or working in close proximity to piping systems.
How to Use the CNC Machining Flanges
Choose the appropriate flange type (e.g., weld neck, slip-on, threaded) based on the application and piping system requirements.
Ensure the flange material is compatible with the medium being transported and the operating conditions.
Select the correct pressure rating and temperature class for the flange.
Inspect the flange for any visible defects, such as cracks, burrs, or uneven surfaces.
Clean the flange thoroughly to remove any dirt, grease, or other contaminants that could affect the sealing performance.
If required, apply any necessary coatings or treatments to enhance corrosion resistance or improve sealing properties.
Position the flange correctly on the pipe end, aligning the bolt holes and ensuring a proper fit.
Secure the flange to the pipe using the appropriate fasteners (bolts, nuts, washers) according to the specified torque values.
Install any gaskets or sealing rings between the flanges to ensure a leak-tight seal.
Follow any specific installation instructions provided by the manufacturer or engineering specifications.
If the flange requires welding to the pipe, follow proper welding procedures and techniques.
Use qualified welders and ensure the weld quality meets the required standards.
Inspect the welds visually and with non-destructive testing methods to verify their integrity.
Perform a final inspection of the installed flange to ensure it is properly aligned, securely fastened, and free of any defects.
Check for any leaks by conducting a pressure test or using leak detection methods.
Document the installation and inspection results for future reference and maintenance purposes.
