Hey there! As a supplier in the CNC precision machining industry, I often get asked about surface roughness requirements. It's a crucial aspect of CNC precision machining that can significantly impact the performance and functionality of the final product. In this blog, I'll share some insights into what surface roughness requirements are, why they matter, and how we ensure they're met in our machining processes.
What is Surface Roughness?
Surface roughness refers to the irregularities on the surface of a machined part. These irregularities can be caused by various factors, such as the machining process, tool wear, and the material being machined. Surface roughness is typically measured in micrometers (μm) or micro - inches (μin), and it describes the height, width, and spacing of the surface irregularities.
There are several parameters used to quantify surface roughness. The most common ones are Ra (arithmetical mean deviation of the roughness profile), Rz (average maximum height of the roughness profile), and Rq (root - mean - square deviation of the roughness profile). Ra is the most widely used parameter as it provides a good overall indication of the surface texture.
Why Do Surface Roughness Requirements Matter?
Surface roughness requirements are important for several reasons. First and foremost, they can affect the part's functionality. For example, in a hydraulic system, a smooth surface finish on the valve components is necessary to prevent leakage. If the surface is too rough, fluid can seep through the gaps between the mating parts, leading to reduced efficiency and potential system failure.
In addition, surface roughness can impact the part's wear resistance. A rough surface has more contact points, which can lead to increased friction and wear over time. On the other hand, a smooth surface reduces friction and can extend the part's service life.
Aesthetics also play a role. In consumer products, a smooth and polished surface can enhance the product's appearance and perceived quality. For example, in jewelry or high - end consumer electronics, a fine surface finish is often required to meet the customer's expectations.
Surface Roughness Requirements in Different Applications
Automotive Industry
In the automotive industry, surface roughness requirements are strict. Engine components, such as pistons and cylinders, need to have a very smooth surface finish to ensure proper sealing and efficient operation. A rough surface on these parts can lead to increased fuel consumption, reduced power output, and higher emissions. The typical Ra value for engine cylinder bores can range from 0.2 to 0.8 μm.
Aerospace Industry
The aerospace industry has even more demanding surface roughness requirements. Components like turbine blades and aircraft landing gear need to be extremely smooth to withstand high - speed airflow and heavy loads. Surface roughness can affect the aerodynamics of the aircraft, and any irregularities can increase drag and reduce fuel efficiency. Ra values for aerospace components can be as low as 0.1 μm.
Medical Industry
In the medical industry, surface roughness is crucial for the safety and effectiveness of medical devices. For example, implants need to have a smooth surface to prevent the accumulation of bacteria and reduce the risk of infection. Surgical instruments also require a fine surface finish to ensure easy cleaning and sterilization. Ra values for medical implants can range from 0.1 to 0.4 μm.
How We Meet Surface Roughness Requirements in CNC Precision Machining
As a CNC precision machining supplier, we take several steps to ensure that our parts meet the required surface roughness standards.
Tool Selection
The choice of cutting tools is critical in achieving the desired surface finish. We select high - quality tools with sharp cutting edges and appropriate geometries. For example, when machining soft materials like aluminum, we might use carbide end mills with a high helix angle to reduce chatter and produce a smoother surface.
Machining Parameters
We carefully optimize the machining parameters, such as cutting speed, feed rate, and depth of cut. By adjusting these parameters, we can control the amount of material removed and the quality of the surface finish. For instance, a lower feed rate and a higher cutting speed generally result in a smoother surface.
Post - machining Processes
In some cases, we use post - machining processes to improve the surface roughness. These processes include grinding, polishing, and lapping. Grinding can be used to achieve a very fine surface finish on hard materials. Polishing is often used for aesthetic purposes, especially on parts that are visible to the end - user.
Our CNC Precision Machining Services
We offer a wide range of Precision CNC Machining Services to meet the diverse needs of our customers. Whether you need parts with a specific surface roughness requirement or a complex design, we have the expertise and equipment to get the job done.
We specialize in machining various materials, including brass and stainless steel. Our Brass CNC Turned Parts are known for their excellent surface finish and high precision. Brass is a popular material due to its good machinability and corrosion resistance.

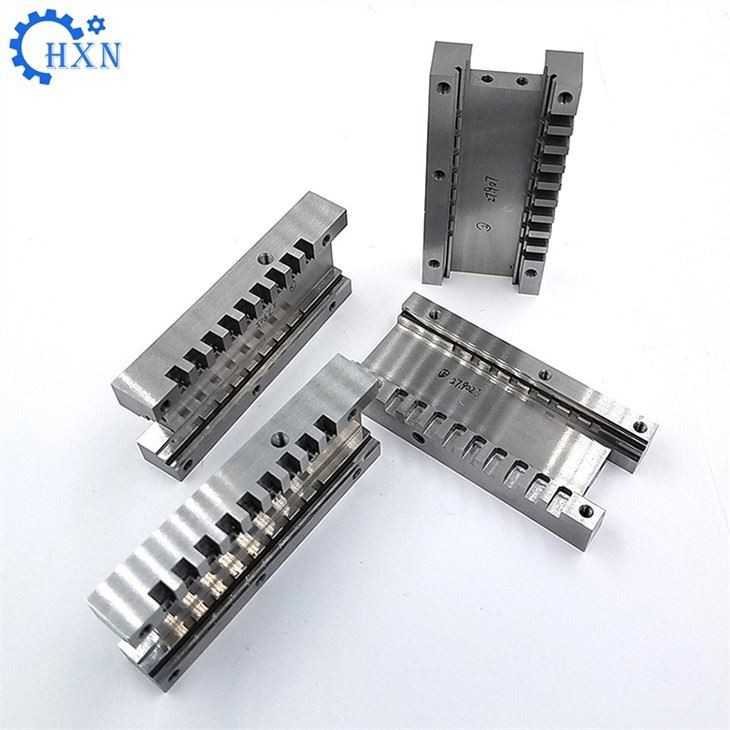

We also provide Stainless Steel Cnc Milling services. Stainless steel is widely used in many industries because of its strength and durability. Our advanced milling techniques ensure that the stainless - steel parts we produce have the required surface roughness and dimensional accuracy.
Conclusion
Surface roughness requirements are an essential part of CNC precision machining. They can affect the functionality, wear resistance, and aesthetics of the final product. As a CNC precision machining supplier, we understand the importance of meeting these requirements and have the necessary skills and processes in place to ensure the highest quality parts.
If you're in need of precision - machined parts with specific surface roughness requirements, we'd love to hear from you. Contact us to discuss your project and get a quote. We're committed to providing you with the best CNC machining solutions.
References
- ASME B46.1 - 2019, "Surface Texture (Surface Roughness, Waviness, and Lay)"
- ISO 4287:1997, "Geometrical Product Specifications (GPS) - Surface texture: Profile method - Terms, definitions and surface texture parameters"
- "Manufacturing Engineering and Technology" by Serope Kalpakjian and Steven R. Schmid
