As a supplier of CNC turning services, I often encounter questions from clients about the capabilities of CNC turning machines. One of the most common inquiries is whether a CNC turning machine can perform milling operations. In this blog post, I'll delve into this topic, exploring the potential of CNC turning machines to carry out milling tasks, the limitations they may face, and the practical implications for your manufacturing needs.
Understanding CNC Turning and Milling
Before we dive into whether a CNC turning machine can perform milling operations, it's essential to understand the fundamental differences between turning and milling.
CNC turning is a machining process in which a cutting tool removes material from a rotating workpiece to create a cylindrical shape. The workpiece is held in a chuck or collet and rotates at a high speed while the cutting tool moves along the axis of the workpiece to remove material. This process is ideal for creating parts with rotational symmetry, such as shafts, bolts, and bushings.
On the other hand, CNC milling is a machining process that uses a rotating cutting tool to remove material from a stationary workpiece. The cutting tool moves along multiple axes to create complex shapes and features, such as slots, pockets, and contours. Milling is suitable for producing parts with irregular shapes and geometries that cannot be easily achieved through turning.
Can a CNC Turning Machine Perform Milling Operations?
The short answer is yes, a CNC turning machine can perform certain milling operations. Modern CNC turning machines are often equipped with live tooling, which allows them to perform additional operations beyond traditional turning. Live tooling refers to cutting tools that can rotate independently of the workpiece, enabling the machine to perform milling, drilling, and tapping operations.
With live tooling, a CNC turning machine can create features such as flats, slots, and holes on the surface of a cylindrical workpiece. For example, a CNC turning machine with live tooling can mill a flat surface on the side of a shaft or drill a hole perpendicular to the axis of the workpiece. This versatility makes CNC turning machines with live tooling a valuable asset for manufacturers who need to produce parts with both rotational and non - rotational features.
Advantages of Using a CNC Turning Machine for Milling
There are several advantages to using a CNC turning machine for milling operations:
1. Reduced Setup Time
By performing both turning and milling operations on the same machine, manufacturers can eliminate the need to transfer the workpiece between different machines. This reduces setup time and increases productivity, as the machine can complete multiple operations in a single setup.
2. Improved Accuracy
Since the workpiece remains in the same setup throughout the machining process, there is less chance of alignment errors. This results in improved accuracy and precision, especially for parts that require tight tolerances.
3. Cost - Effectiveness
Investing in a CNC turning machine with live tooling can be more cost - effective than purchasing separate turning and milling machines. It allows manufacturers to achieve a wider range of capabilities with a single piece of equipment, reducing capital expenditure and floor space requirements.
Limitations of Using a CNC Turning Machine for Milling
While a CNC turning machine can perform milling operations, it does have some limitations compared to dedicated milling machines:
1. Limited Axis Movement
CNC turning machines typically have fewer axes of movement compared to milling machines. Most turning machines with live tooling have three or four axes, while milling machines can have up to five or more axes. This limited axis movement restricts the complexity of the milling operations that can be performed on a turning machine.
2. Lower Milling Capacity
CNC turning machines are primarily designed for turning operations, so their milling capacity is often lower than that of dedicated milling machines. They may not be able to handle large - scale milling operations or remove large amounts of material quickly.
3. Tooling Constraints
The tooling options for milling on a CNC turning machine are more limited compared to a milling machine. The size and type of cutting tools that can be used are often restricted by the design of the live tooling system and the machine's spindle.
Practical Applications

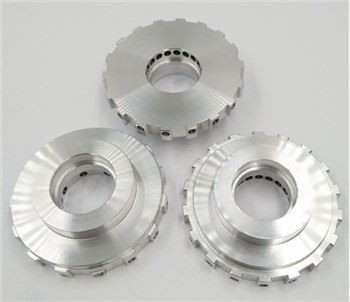

Despite its limitations, using a CNC turning machine for milling operations can be beneficial in many practical applications. For example, in the production of Aluminium Turning Parts, a CNC turning machine with live tooling can be used to create both the cylindrical body of the part through turning and additional features such as holes or slots through milling. This approach streamlines the manufacturing process and reduces production time.
Another application is in the production of 304 Stainless Hex Bushings. A CNC turning machine can turn the cylindrical shape of the bushing and then use live tooling to mill the hexagonal shape on the outside surface, eliminating the need for a separate milling operation.
When to Choose a Dedicated Milling Machine
While a CNC turning machine with live tooling can handle some milling tasks, there are situations where a dedicated milling machine is a better choice:
1. Complex Geometries
If the part has complex geometries, such as deep pockets, intricate contours, or three - dimensional shapes, a dedicated milling machine is more suitable. Milling machines with multiple axes can provide the flexibility and precision required to create these complex features.
2. High - Volume Milling
For high - volume milling operations that require the removal of large amounts of material, a dedicated milling machine is more efficient. These machines are designed to handle heavy - duty milling tasks and can operate at higher speeds and feeds.
Conclusion
In conclusion, a CNC turning machine can perform certain milling operations thanks to the integration of live tooling. It offers advantages such as reduced setup time, improved accuracy, and cost - effectiveness, making it a versatile option for manufacturers. However, it also has limitations in terms of axis movement, milling capacity, and tooling options.
When deciding whether to use a CNC turning machine for milling or a dedicated milling machine, it's important to consider the specific requirements of the part, including its geometry, size, and production volume. As a Cnc Precision Turning Service provider, we have the expertise and equipment to help you determine the most suitable machining process for your needs.
If you are interested in our CNC turning and milling services, or if you have any questions about the capabilities of our machines, please feel free to contact us. We are ready to discuss your project requirements and provide you with a customized solution.
References
- Boothroyd, G., & Knight, W. A. (2006). Fundamentals of machining and machine tools. CRC Press.
- Groover, M. P. (2010). Fundamentals of modern manufacturing: Materials, processes, and systems. Wiley.
- Trent, E. M., & Wright, P. K. (2000). Metal cutting. Butterworth - Heinemann.
